High Temp Chip Carrier for Ultrasonic MEMS Device

Aluminum Tool Plate

Designed and CNC machined lidded chip carrier for high temp thermal testing of 2 mm square MEMS devices.

+

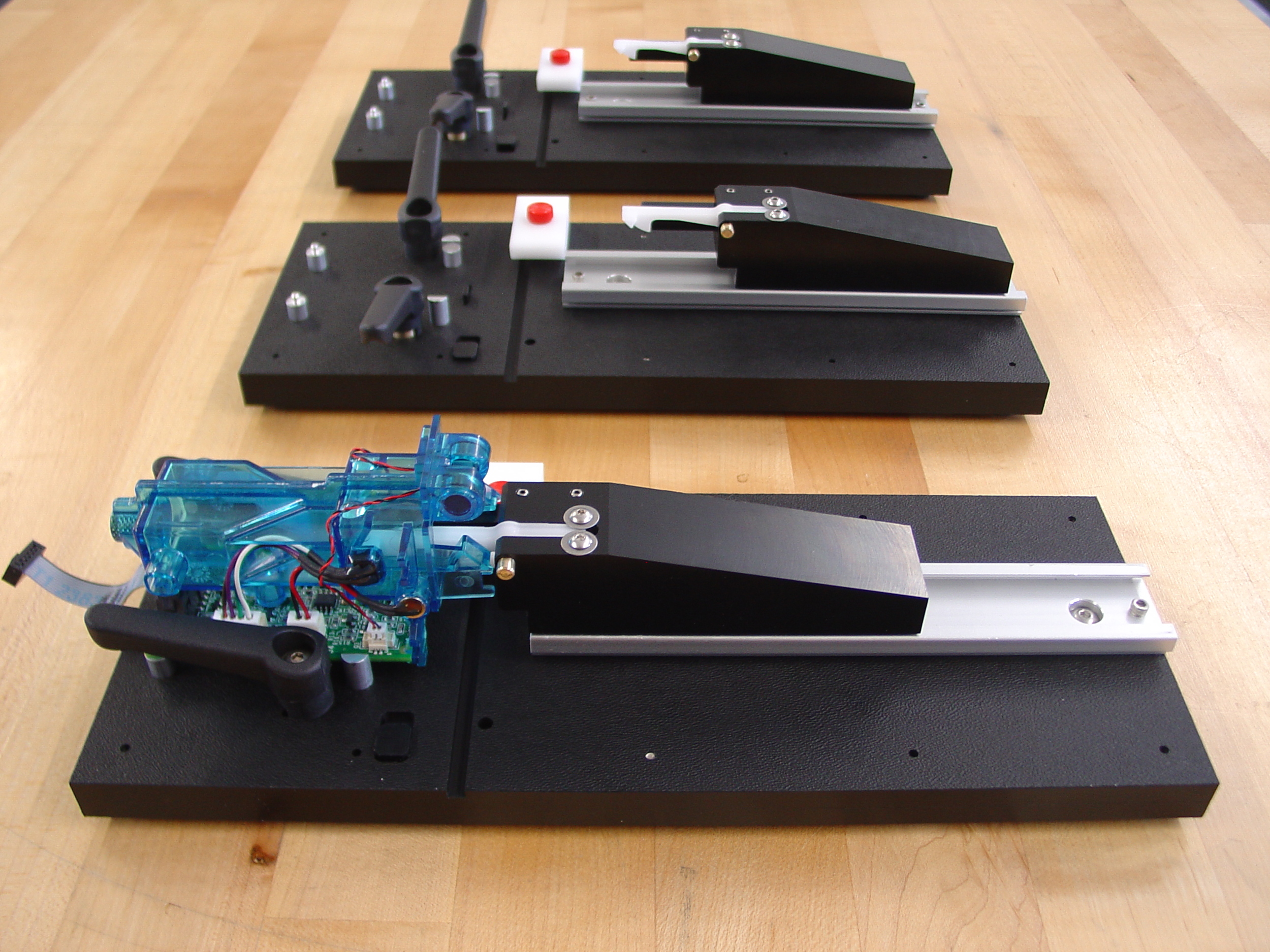

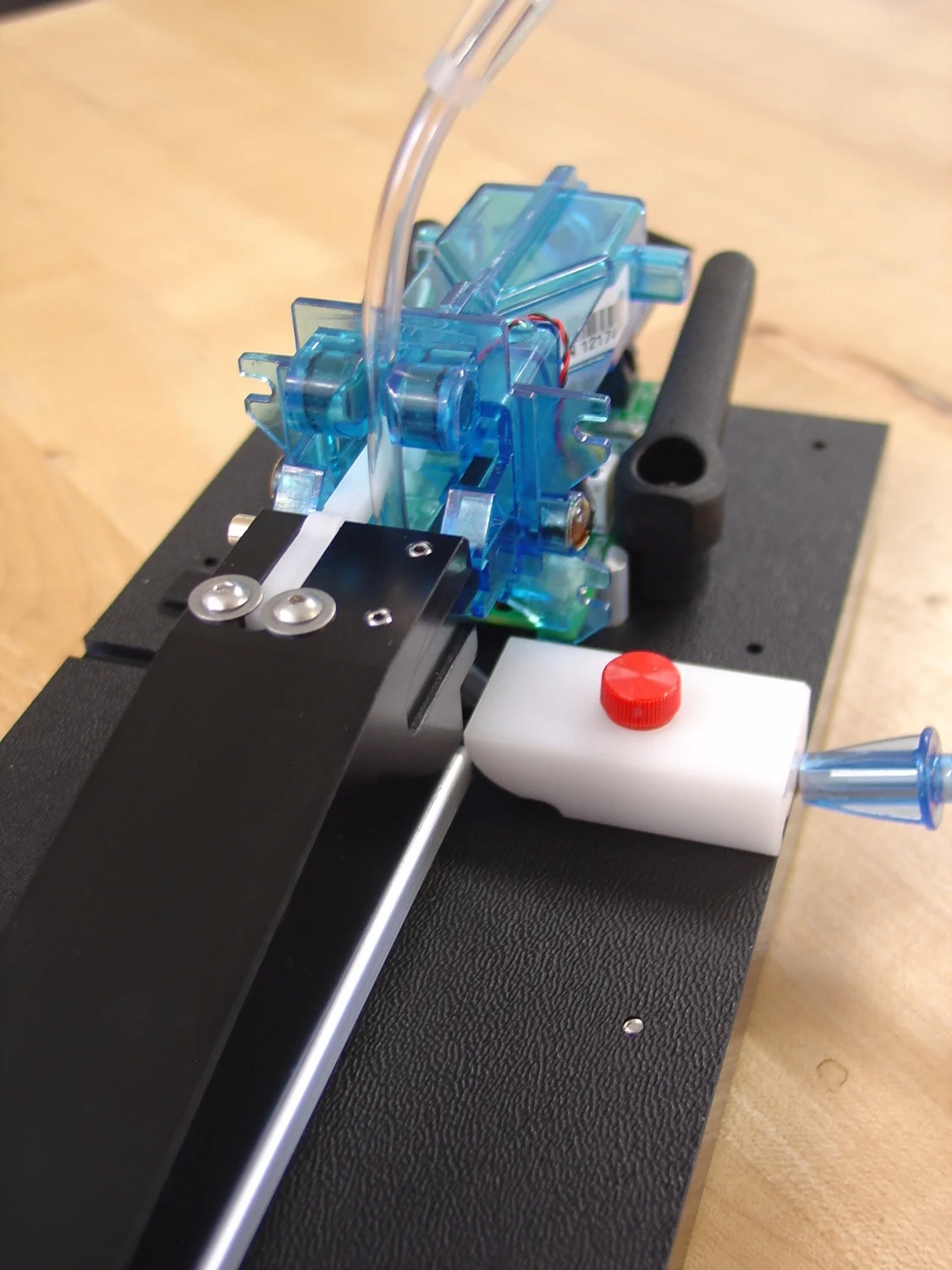

Ultrasonic IV Tube Flow/Bubble Monitor Production Test Fixture

Designed and Fabricated

Conductive ABS and Aluminum

CNC Machined Parts

+

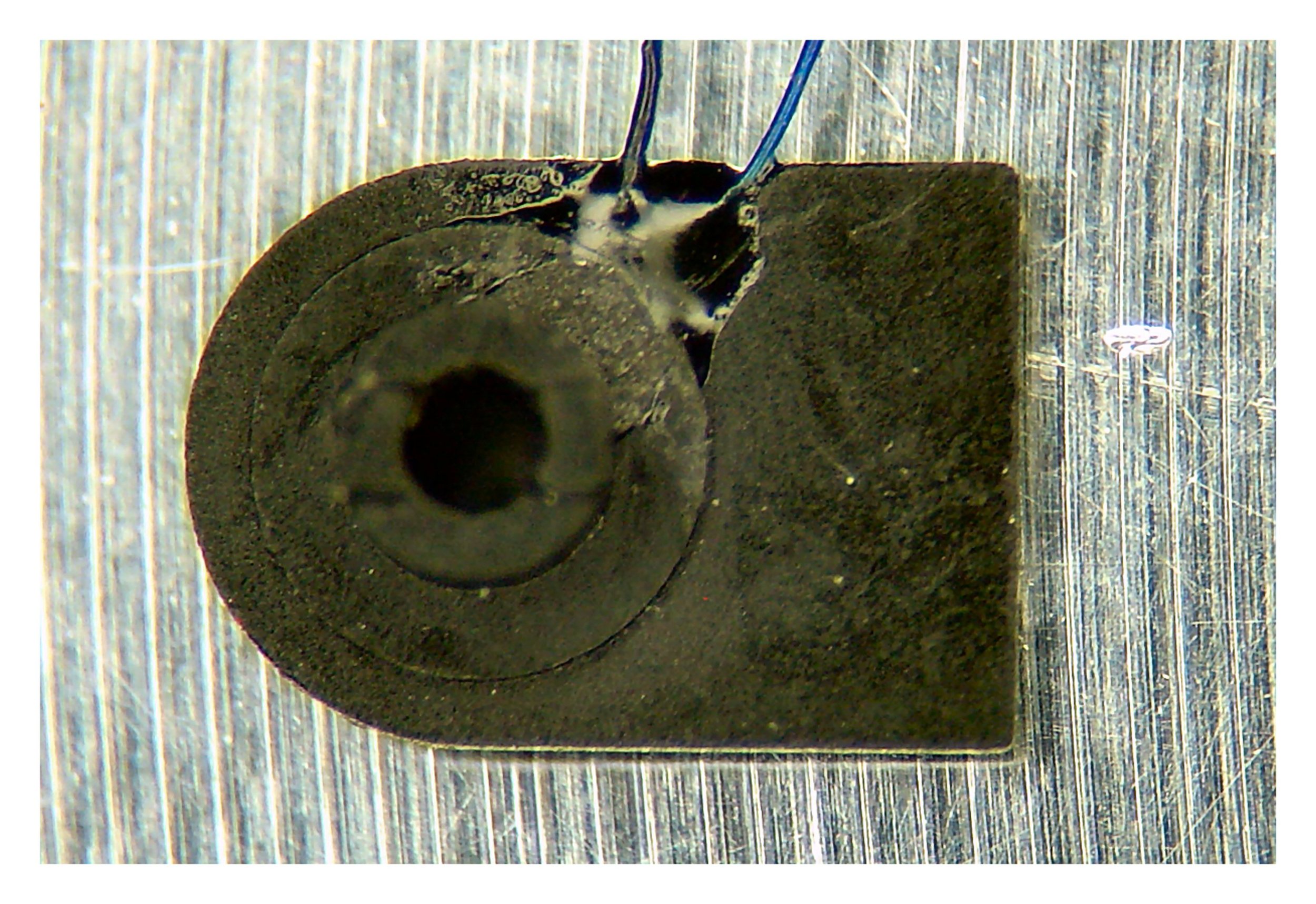

Micro Thermocouple Embedded in Glass Filled Laparoscopic Device Jaw Pivot Component

5mil Diameter Iron / Constantine Thermocouple in 125X187mil Component

Developed method and implemented process to measure temperature at jaw pivot point. Used in a functional Laparoscopic vessel sealer under normal use for thermal evaluation of material.

+

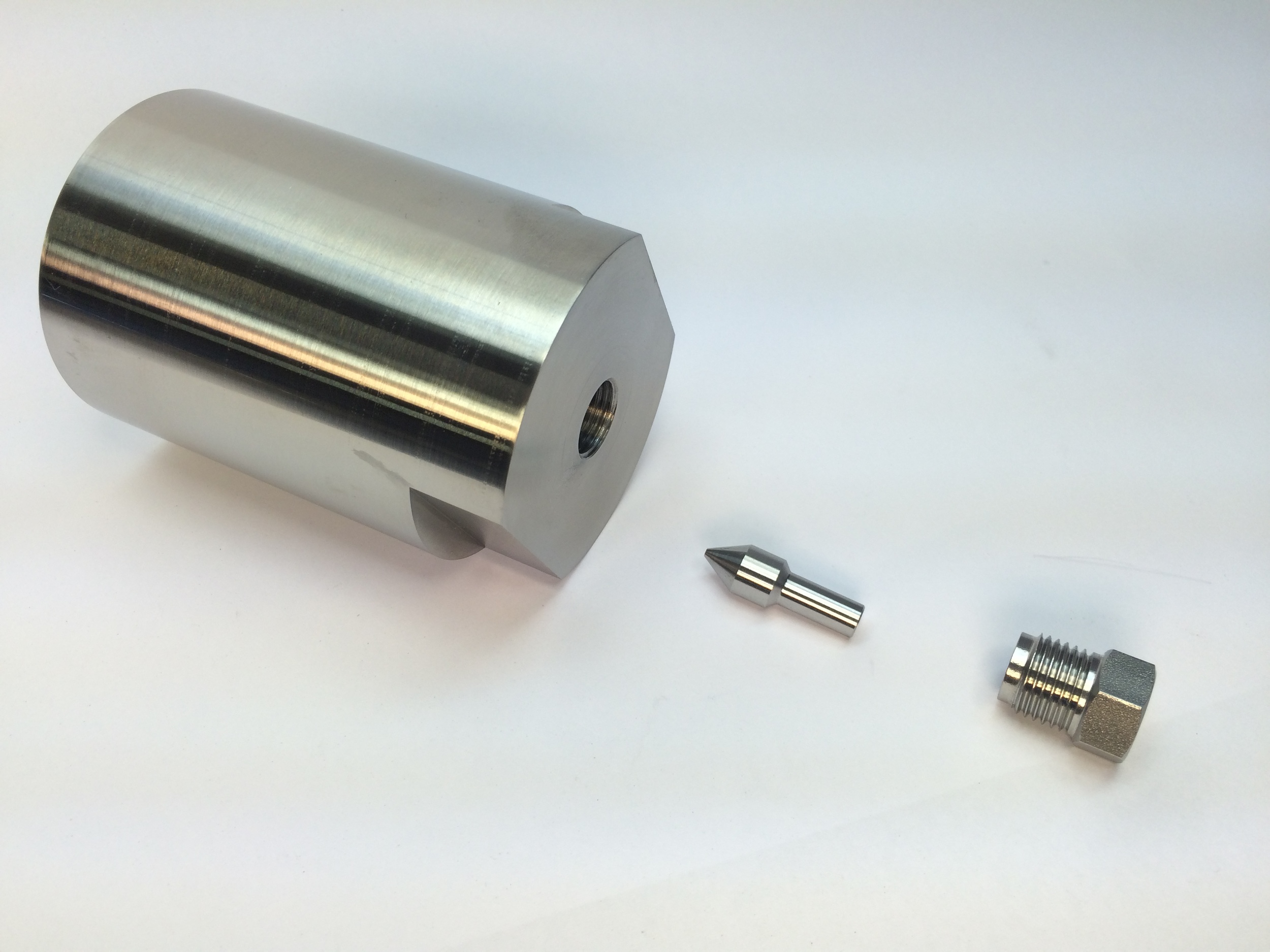

High Pressure 20,000 psi Pressure Pot

300 Series Stainless Steel

Machined

+

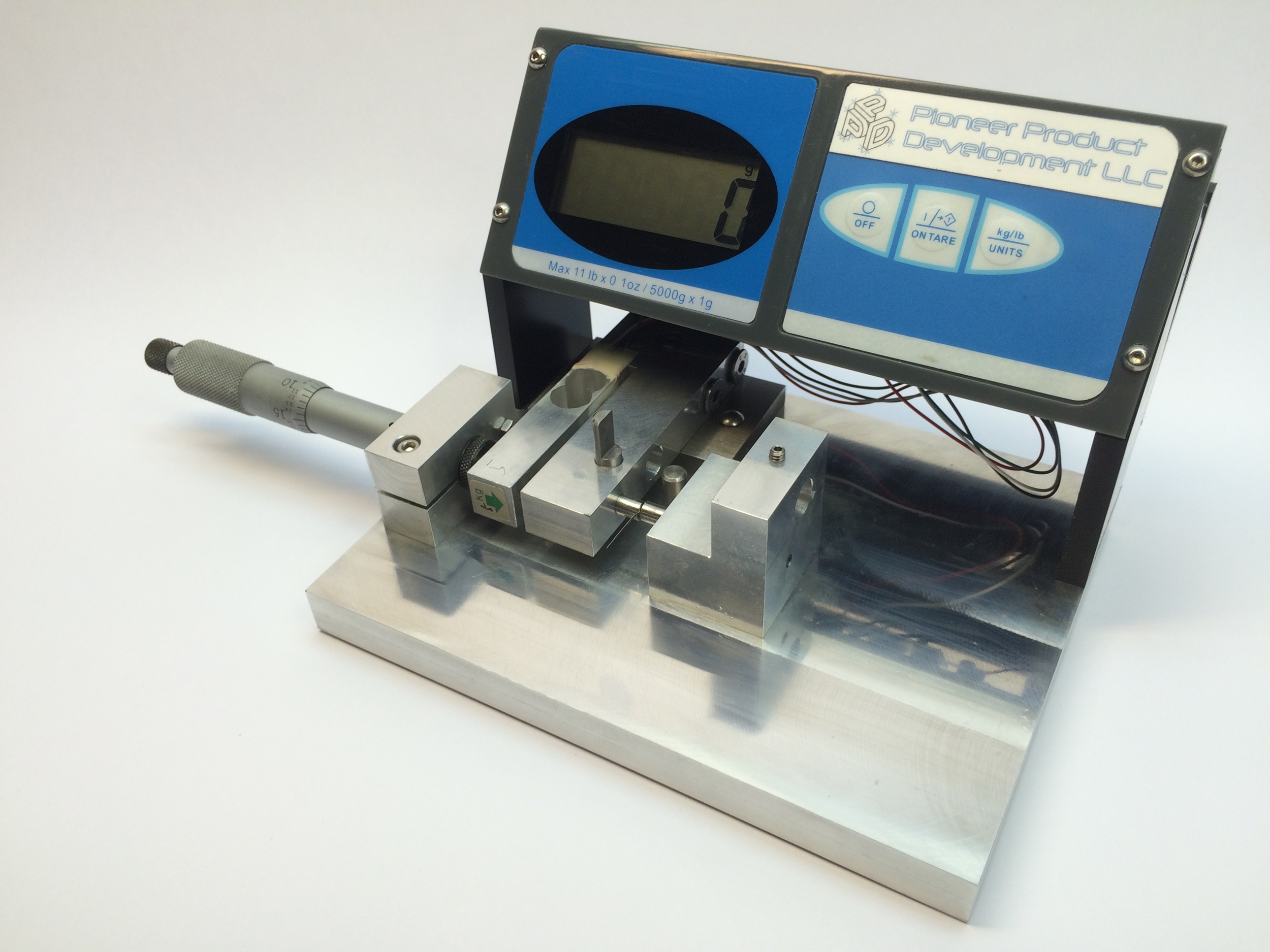

Spring Force Measurment Fixture

Designed and fabricated test apparatus to evaluate spring force vs. compression distance of a rotational electrical contact element in an electrosurgical device. Compression measurements are in increments of 0.0005" and force in grams.

+

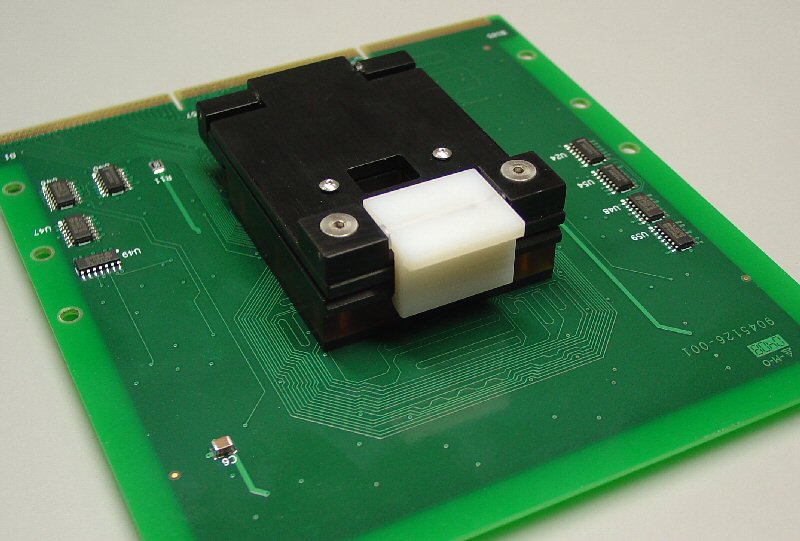

Micro Pogo Pin Electrical Test Socket for LCOS mircro-projection Display Panel

Designed and fabricated test socket with 0.008" diameter pogo pins on 0.012" centers used in high volume production test environment.

+

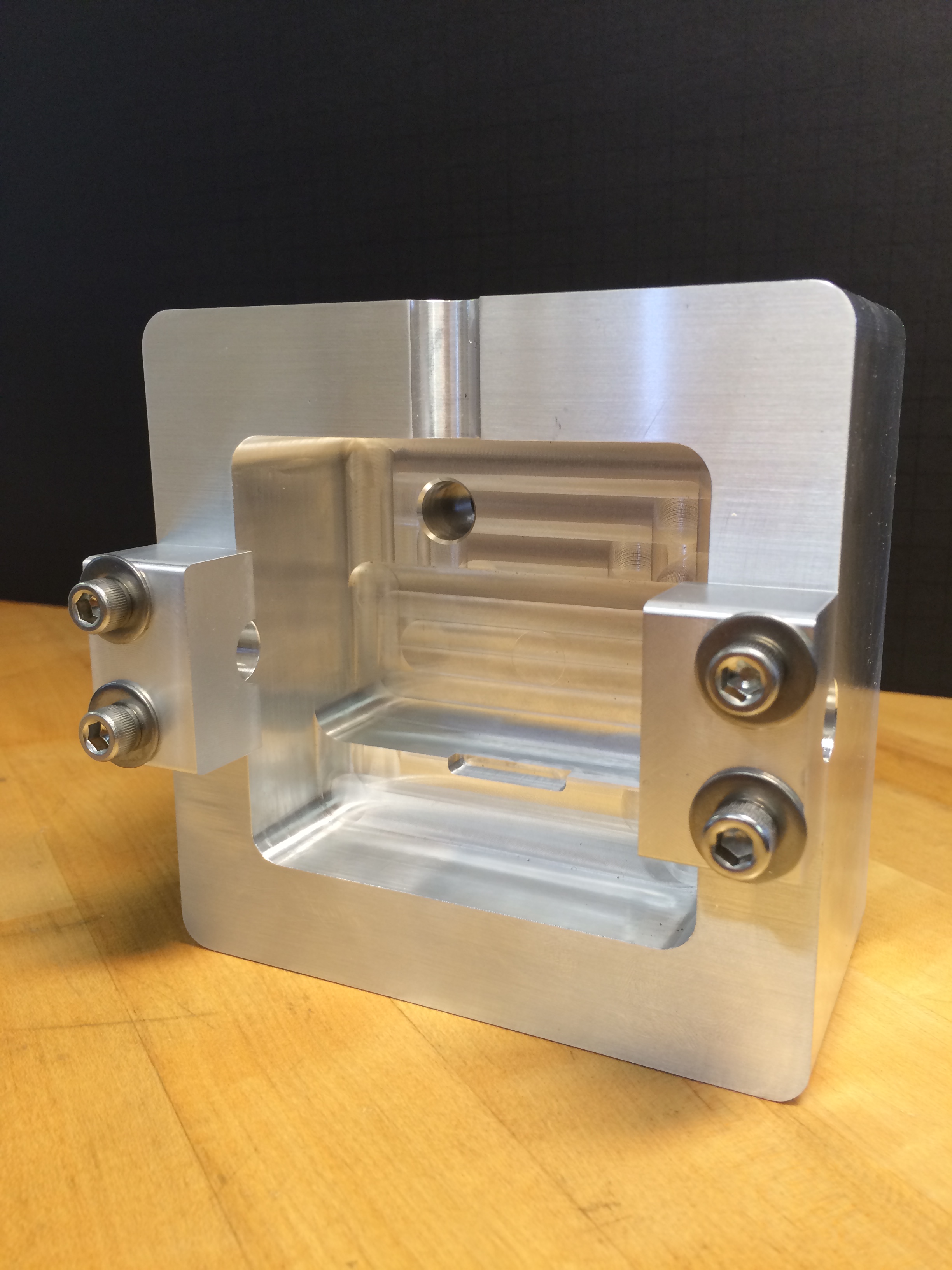

Atreal Filter Clamp Test Fixture

6061 Aluminum Alloy

Fabricated test fixture for medical tech company

CNC Machined

+

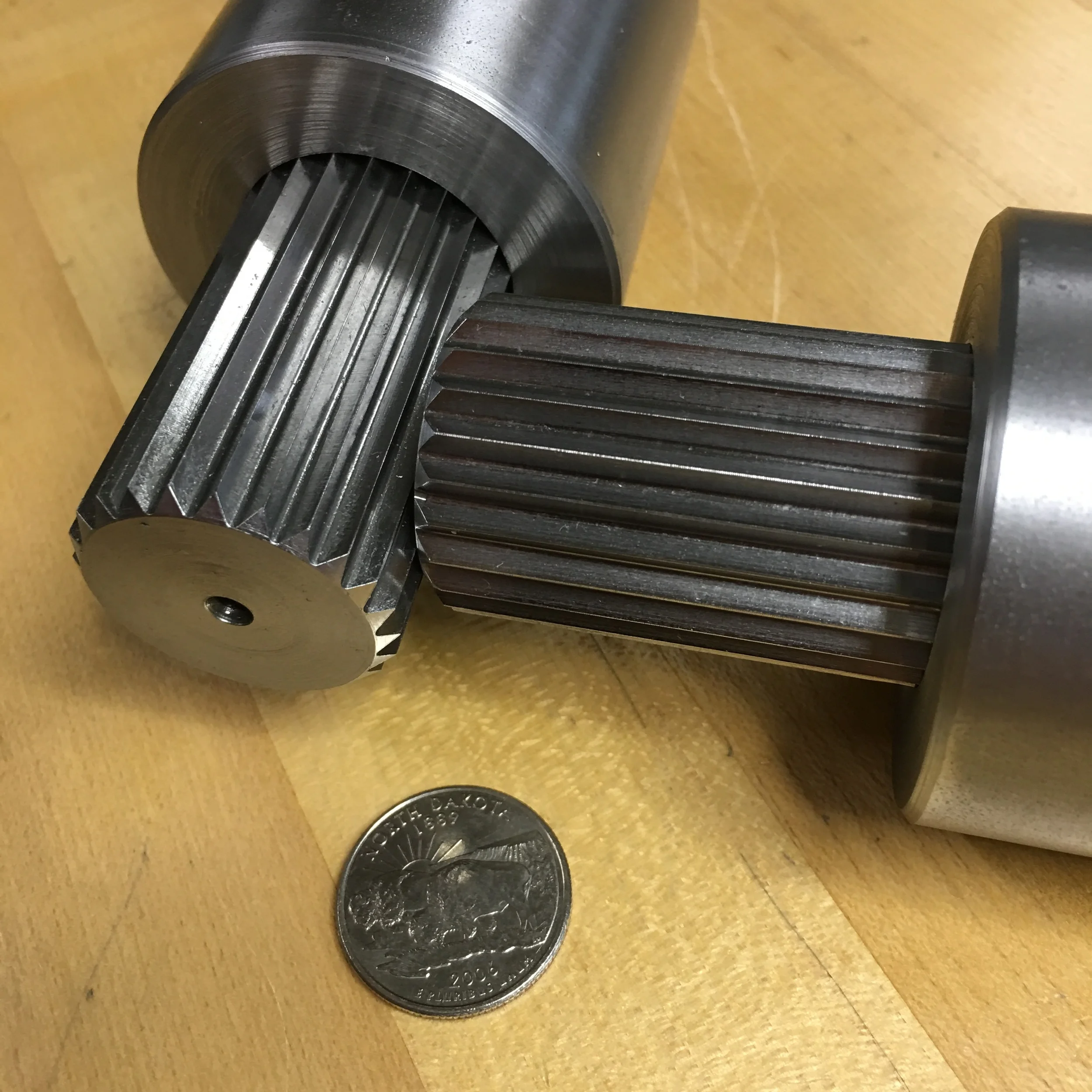

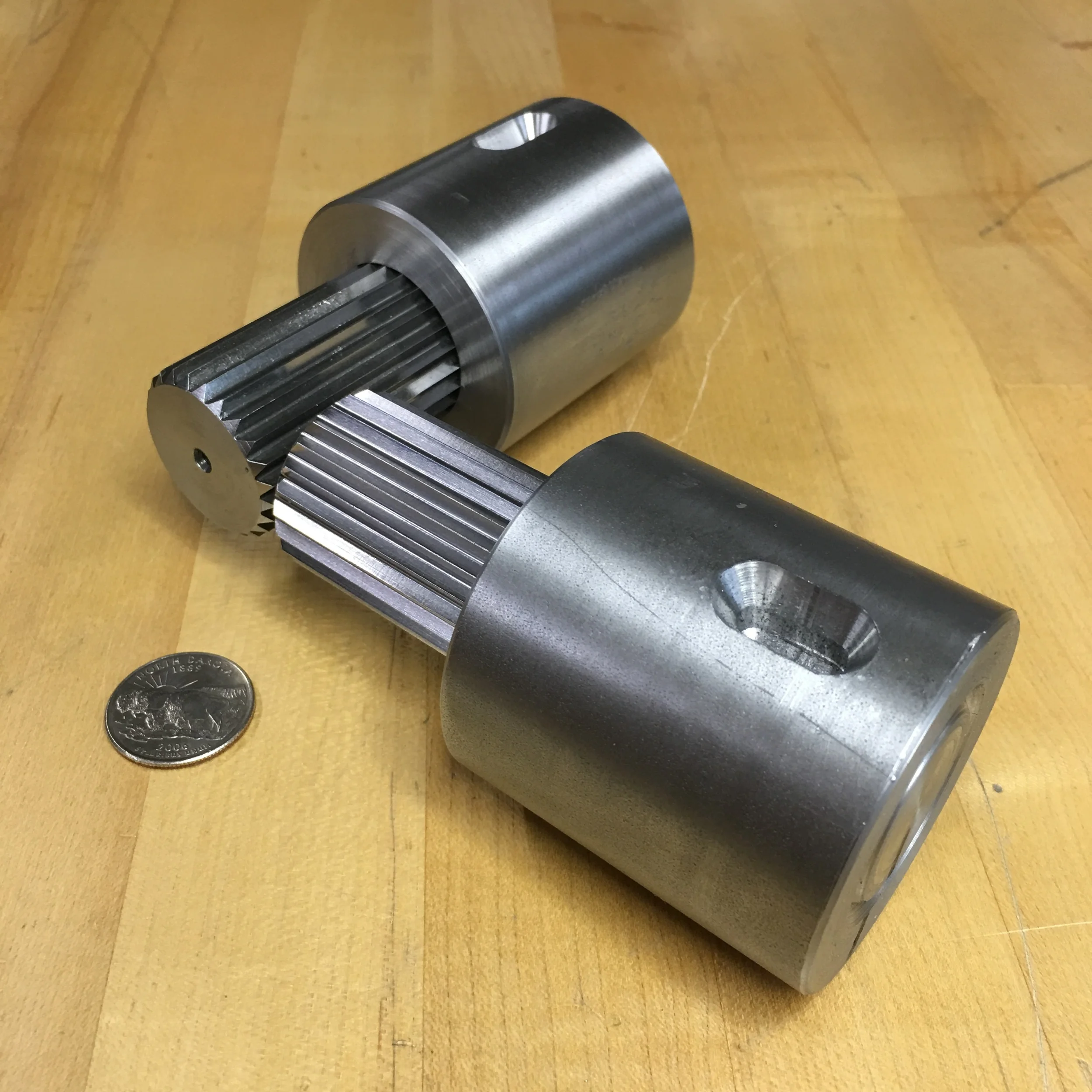

Drive Shaft Balance Machine Spline

Stainless Steel

Manualy Machined to fit sample Spline.

+
